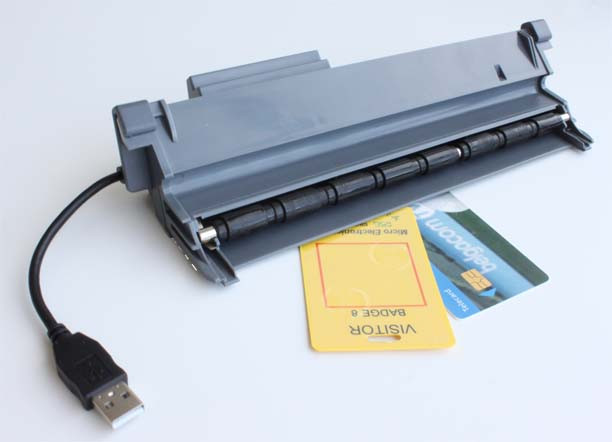

Contactless and Contact Smart Card reader add-on for the KS810-P Imaging-Keyboard system. The KS-7H is attached to the back of the KS810-P replacing its "standard" back door and connected to the KS810-P USB hub port, no extra power cable or connection to the PC.

Contactless and Contact Smart-Card reader applications:

• Data protection and records management
• Data compression
• Secured ID
• Access control

KS-7H Smart-Card reader specifications

Add-on attachment to the back door of the KS810-P Imaging-Keyboard system

Host connection: No direct connection, Connects only to the USB port on the back of the KS810-P

Dimensions: (Approx. with the KS810-P door) 10.5” x 2.5” x 3”

Weight: (Approx.) 0.6 lbr

Operating Temperature: 0°-55°C / 32°-131°F

Operating Humidity: 10-90% rH

Contact Interface Durability: 100,000 Insertions

Meantime between Failure (MTBF): 500,000 Hours

Host Interface: USB 2.0 CCID

Host Data Transmission Speed: 12 Mbps (USB 2.0 Full Speed)

Power Supply: USB Bus powered

Contact smart card interface

Standards: ISO 7816 & EMV2 2000 Level 1

Protocols: (T=0, T=1; 2-wire: SLE 4432/42 (S=10); 3-wire: SLE 4418/28 (S=9); I2C (S=8) )

Card size: ID-1 (full-size)

Smart Card interface speed: 420 Kbps (when supported by card)

Smart Card clock frequency: Up to 8 MHz

Supported card types: (5V, 3V and 1.8V Smart Cards; ISO 7816 Class A, AB and C)

Power to Smart Card: 60 mA

Smart Card detection: Movement detection with auto power-off; Automatic detection of: Smart card type short circuit and thermal protection

Contactless smart card interfaces

ISO 14443 A with 424 Kbps transmission rate (depending on card)

ISO 14443 B with 424 Kbps transmission rate (depending on card)

ISO 15693 with 26 Kbps transmission rate (depending on card)

Supported APIs PC/SC driver (ready for 2.01)CT-API (on top of PC/SC, for contact interface)

OCF (on top of PC/SC, for contact interface)Synchronous API (on top of PC/SC)

Minimum system requirements:

Attach to a KeyScan KS810-P Imaging Keyboard Windows XP, Vista, Windows7 (32/64 bits versions)
